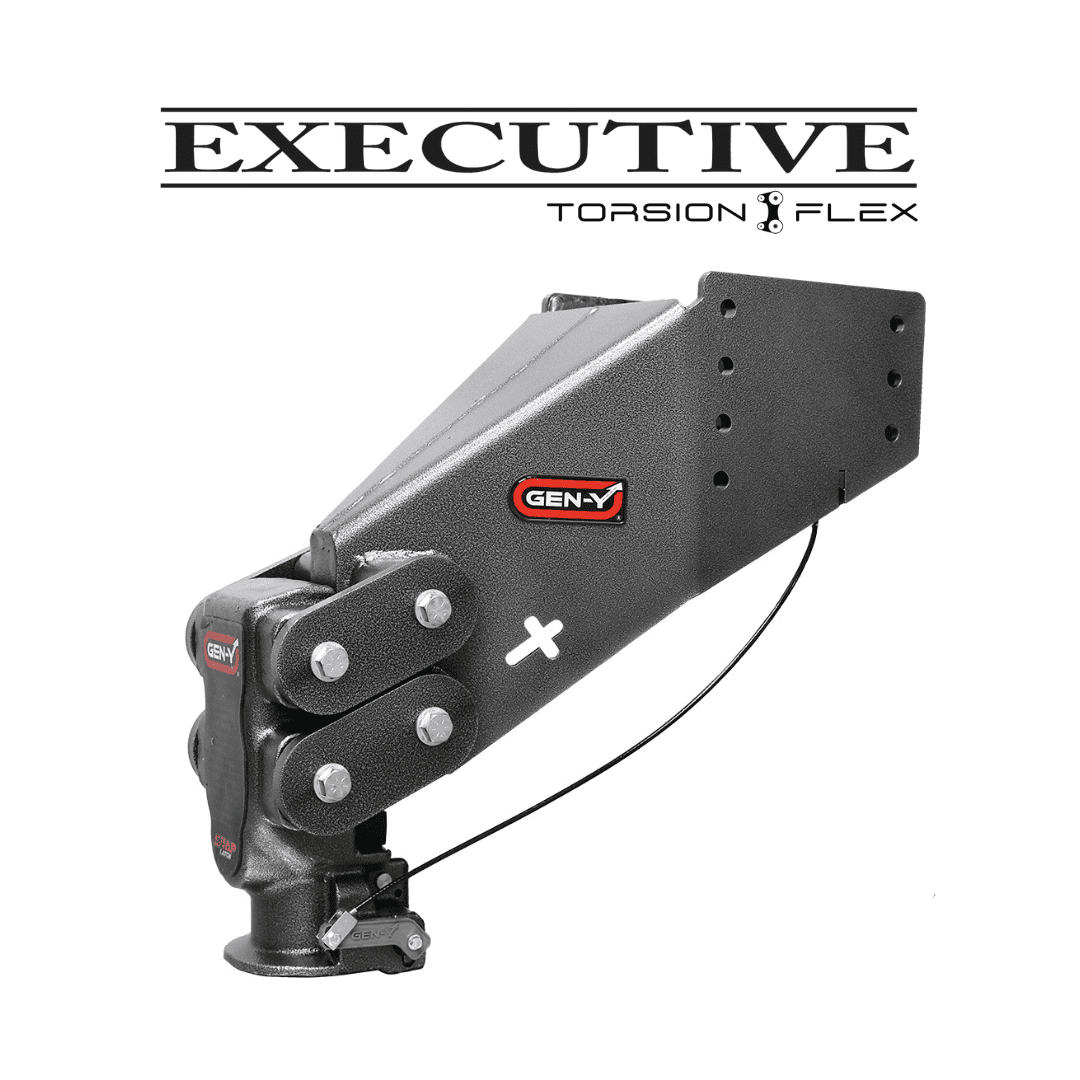

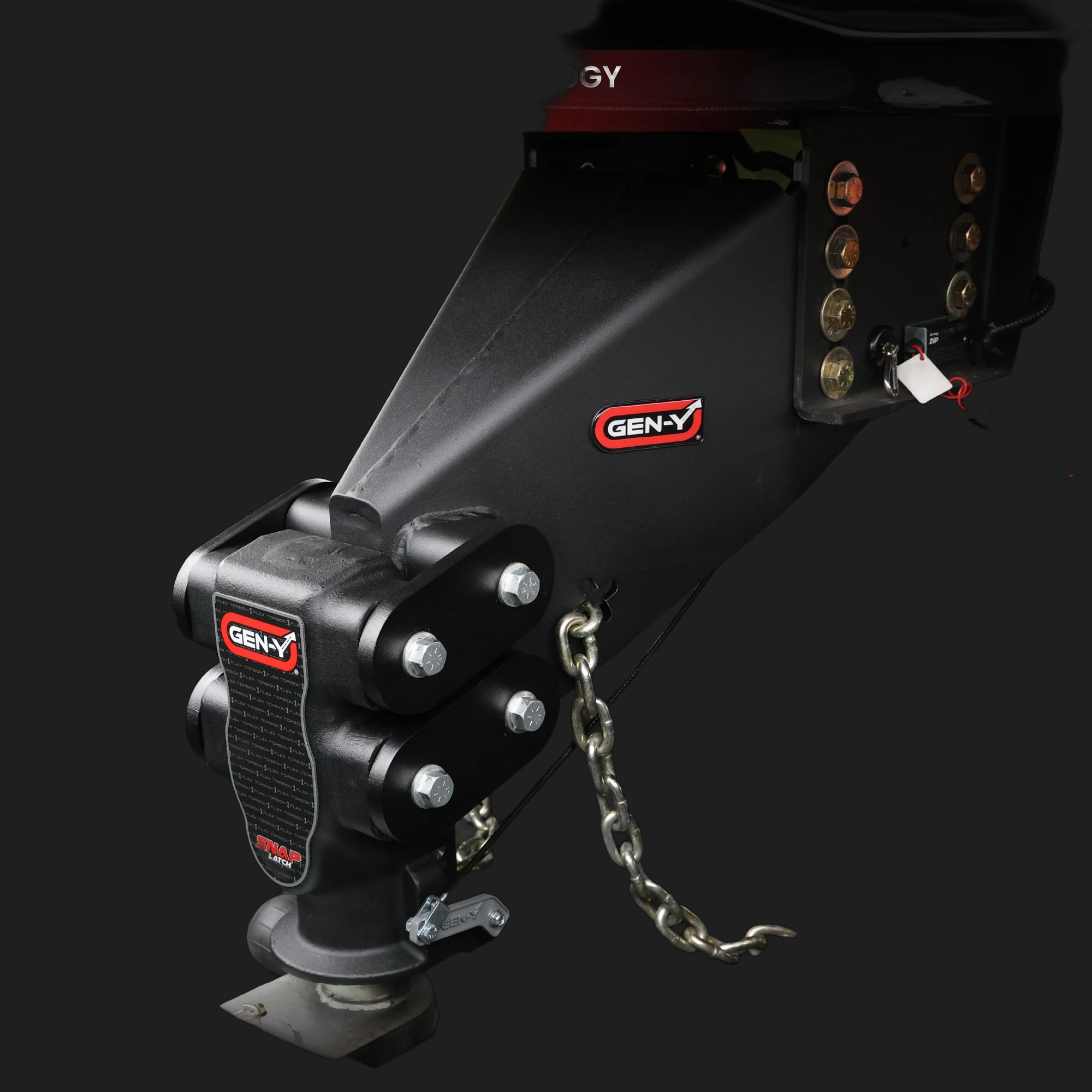

GEN-Y EXECUTIVE Torsion-Flex 5th-to-Gooseneck Pin Box — LCI Rhino (4.5K Pin Weight)
GEN-Y EXECUTIVE Torsion-Flex 5th-to-Gooseneck Pin Box — LCI Rhino (4.5K Pin Weight)
Description:
The GEN-Y EXECUTIVE Fifth Wheel-to-Gooseneck Pin Box replaces your fifth wheel king pin box with a self-latching 2-5/16" SnapLatch gooseneck coupler, so you can tow your fifth wheel RV with a gooseneck ball instead of a bulky fifth wheel hitch and keep full use of your truck bed when you are not towing. This model fits LCI Rhino Box frames and is matched to trailers with a GVWR of 7,275 – 16,360 lbs (1,500 – 4,500 lbs pin weight). Its TORSION-FLEX rubber torsion arms absorb road shock before it reaches the truck, and customers report up to 90% smoother towing than a standard rigid pin box. GEN-Y lists increased cargo protection, reduced tire wear on truck and trailer, and possible improved fuel economy as further benefits. It works with a recessed gooseneck ball only if the top of the ball is within 1" of the truck bed. Stay within the specified pin weight range; tow capacity is limited by the lowest-rated component.
Features:
Connection: Fifth Wheel to Gooseneck, self-latching 2-5/16" SnapLatch Coupler
Frame Model: LCI Rhino Box
Shim Plates: Not required for the Rhino Box
Frame Bolt Spacing (front row to back row): 7-1/2" on center
Trailer GVWR: 7,275 – 16,360 lbs
Pin Weight Range: 1,500 – 4,500 lbs
Towing Rating: 30,000 lbs
Suspension: Built-in TORSION-FLEX rubber torsion shock absorption
Mounting: Adjustable-height bolt configuration (2" of vertical adjustability)
Mounting Bolts: 5/8" x 2" Grade 8 bolts and nuts, minimum 4 per side, torqued to 160 ft. lbs. (re-torque after 50 miles)
Bolt Kit: Sold separately
Safety Chains: Sold separately (Fifth Wheel-to-Gooseneck Safety Chain, 26K capacity)
Recessed Ball: Compatible if the top of the ball is within 1" of the truck bed
Bed Rail Clearance: 6 – 8" recommended
Material: Heavy Duty Steel
Finish: Durable Silver Vein Powder Coat
Product Weight: 180 lbs
Break-In Period: 1,000 miles
Testing: Exceeds SAE J2638 weight testing requirements
Maintenance: Maintenance Free
Patents: US D873723S, US10633039B2 (TORSION-FLEX: US9505281B1, USD773345S1, US9868327B1)
Made In: USA (safety chain and bolts are not made in the USA)
Warranty: 5 years on rubber components, Limited Lifetime Warranty on all remaining components. Optional TORSION-FLEX Lifetime Warranty available
Pin Box Measuring & Fitment Guide
Fifth Wheel TORSION-FLEX Gooseneck (Video)
TORSION-FLEX Lifetime Warranty
SKU’S:
GH-8056AL
