Description:

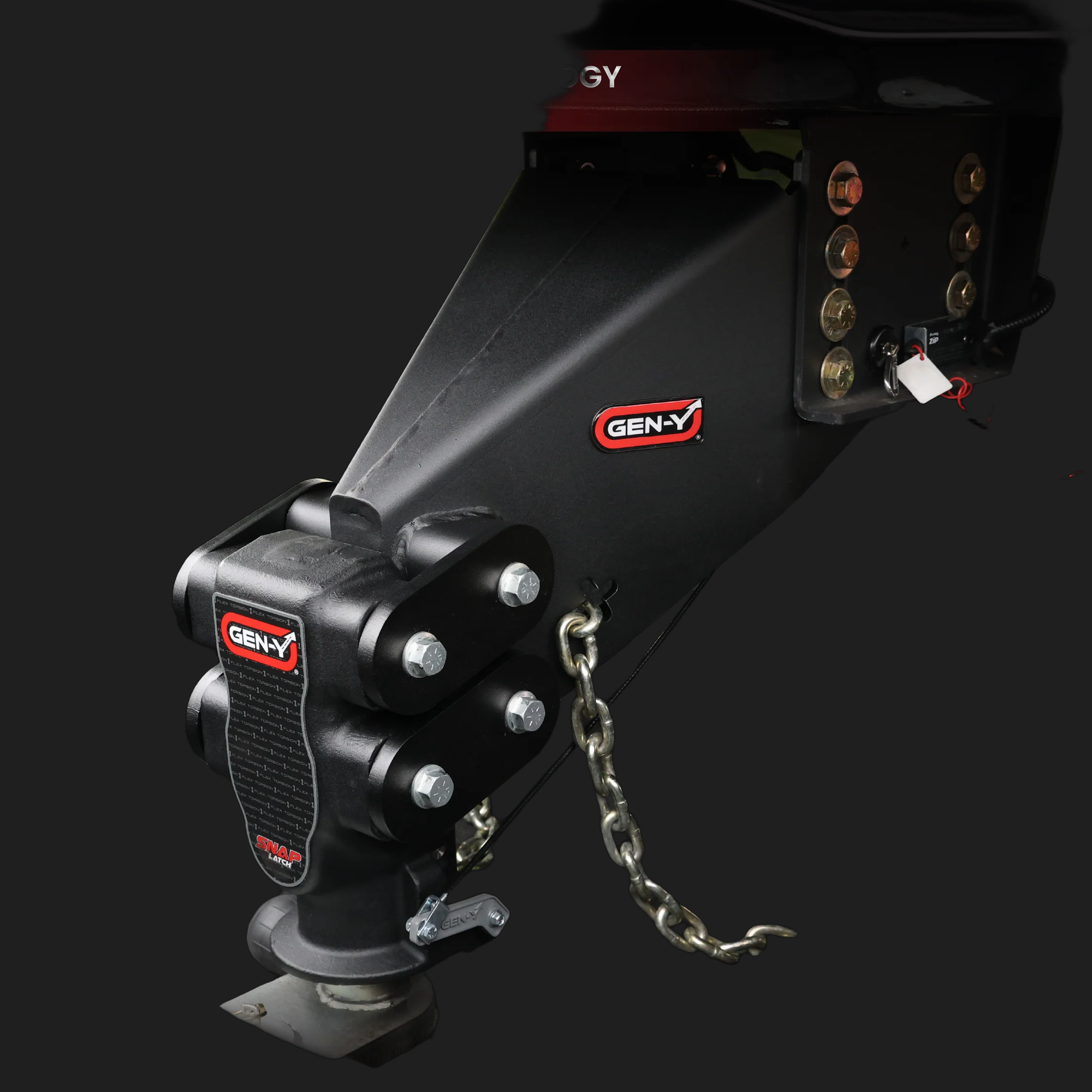

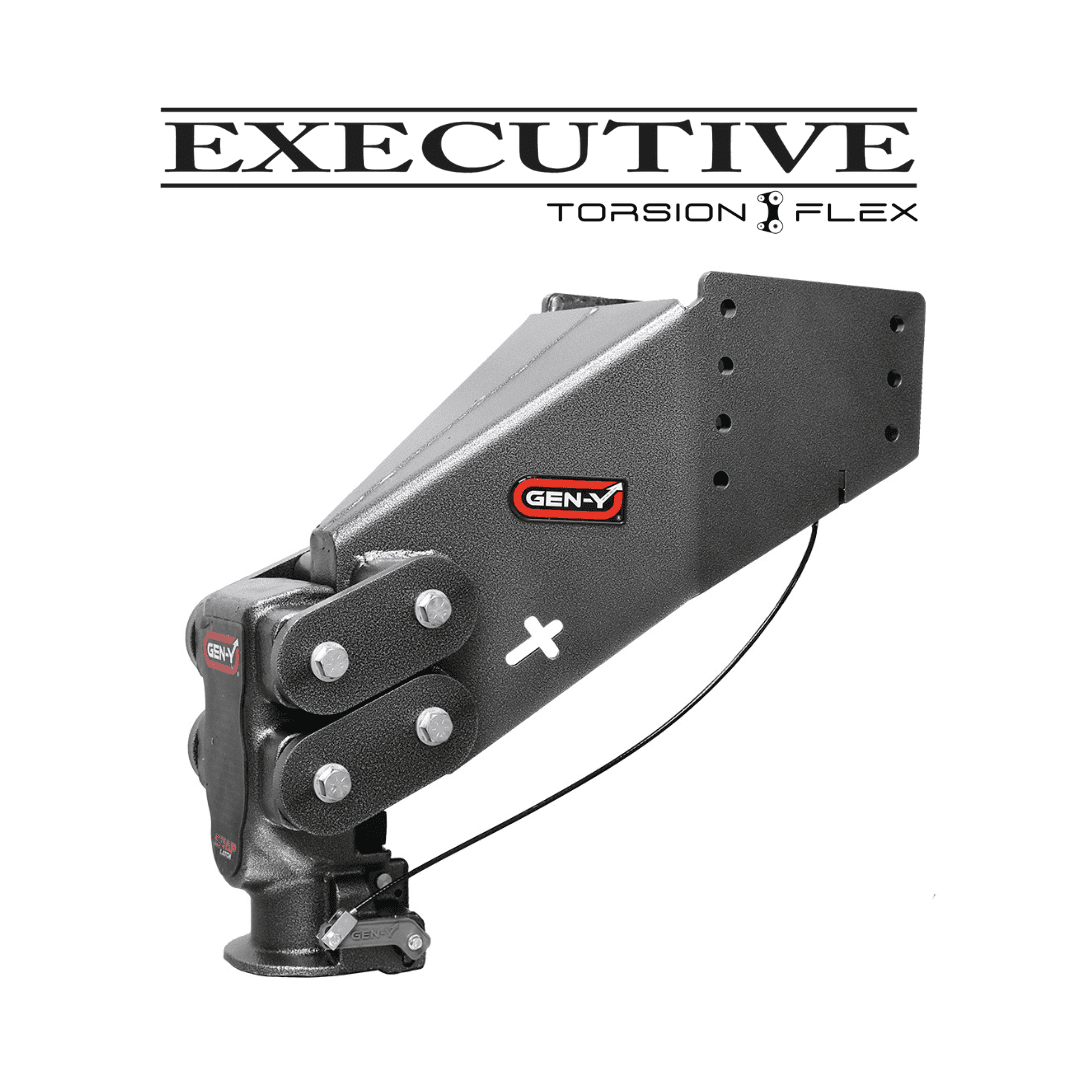

The GEN-Y EXECUTIVE Fifth Wheel-to-Gooseneck Pin Box replaces your fifth wheel king pin box with a self-latching 2-5/16" SnapLatch gooseneck coupler, so you can tow your fifth wheel RV with a gooseneck ball instead of a bulky fifth wheel hitch and keep full use of your truck bed when you are not towing. This model fits Lippert 1621, 1621 HD, 1116, 1716 frames and is matched to trailers with a GVWR of 7,275 – 16,360 lbs (1,500 – 4,500 lbs pin weight). Its TORSION-FLEX rubber torsion arms absorb road shock before it reaches the truck, and customers report up to 90% smoother towing than a standard rigid pin box. GEN-Y lists increased cargo protection, reduced tire wear on truck and trailer, and possible improved fuel economy as further benefits. It works with a recessed gooseneck ball only if the top of the ball is within 1" of the truck bed. Stay within the specified pin weight range; tow capacity is limited by the lowest-rated component.

Features:

Connection: Fifth Wheel to Gooseneck, self-latching 2-5/16" SnapLatch Coupler
Frame Model: Lippert 1621, 1621 HD, 1116, 1716
Shim Plates: Lippert 1116 & 1716 frames require add-on Shim Plates (GH-8000, sold separately); not needed for 1621 / 1621 HD
Frame Bolt Spacing (front row to back row): 7-7/8" on center (Lippert 1621 & 1621 HD), 8-3/4" on center (Lippert 1116 & 1716)
Trailer GVWR: 7,275 – 16,360 lbs
Pin Weight Range: 1,500 – 4,500 lbs
Towing Rating: 30,000 lbs
Suspension: Built-in TORSION-FLEX rubber torsion shock absorption
Mounting: Adjustable-height bolt configuration (2" of vertical adjustability)
Mounting Bolts: 5/8" x 2" Grade 8 bolts and nuts, minimum 4 per side, torqued to 160 ft. lbs. (re-torque after 50 miles)
Bolt Kit: Sold separately
Safety Chains: Sold separately (Fifth Wheel-to-Gooseneck Safety Chain, 26K capacity)
Recessed Ball: Compatible if the top of the ball is within 1" of the truck bed
Bed Rail Clearance: 6 – 8" recommended
Material: Heavy Duty Steel
Finish: Durable Silver Vein Powder Coat
Product Weight: 181 lbs
Break-In Period: 1,000 miles
Testing: Exceeds SAE J2638 weight testing requirements
Maintenance: Maintenance Free
Patents: US D873723S, US10633039B2 (TORSION-FLEX: US9505281B1, USD773345S1, US9868327B1)
Made In: USA (safety chain and bolts are not made in the USA)
Warranty: 5 years on rubber components, Limited Lifetime Warranty on all remaining components. Optional TORSION-FLEX Lifetime Warranty available

EXECUTIVE Installation Guide

EXECUTIVE User Guide

Pin Box Measuring & Fitment Guide

Fifth Wheel TORSION-FLEX Gooseneck (Video)

Warranty Users Guide

TORSION-FLEX Lifetime Warranty

SKU’S:
GH-8055AL
