Description:

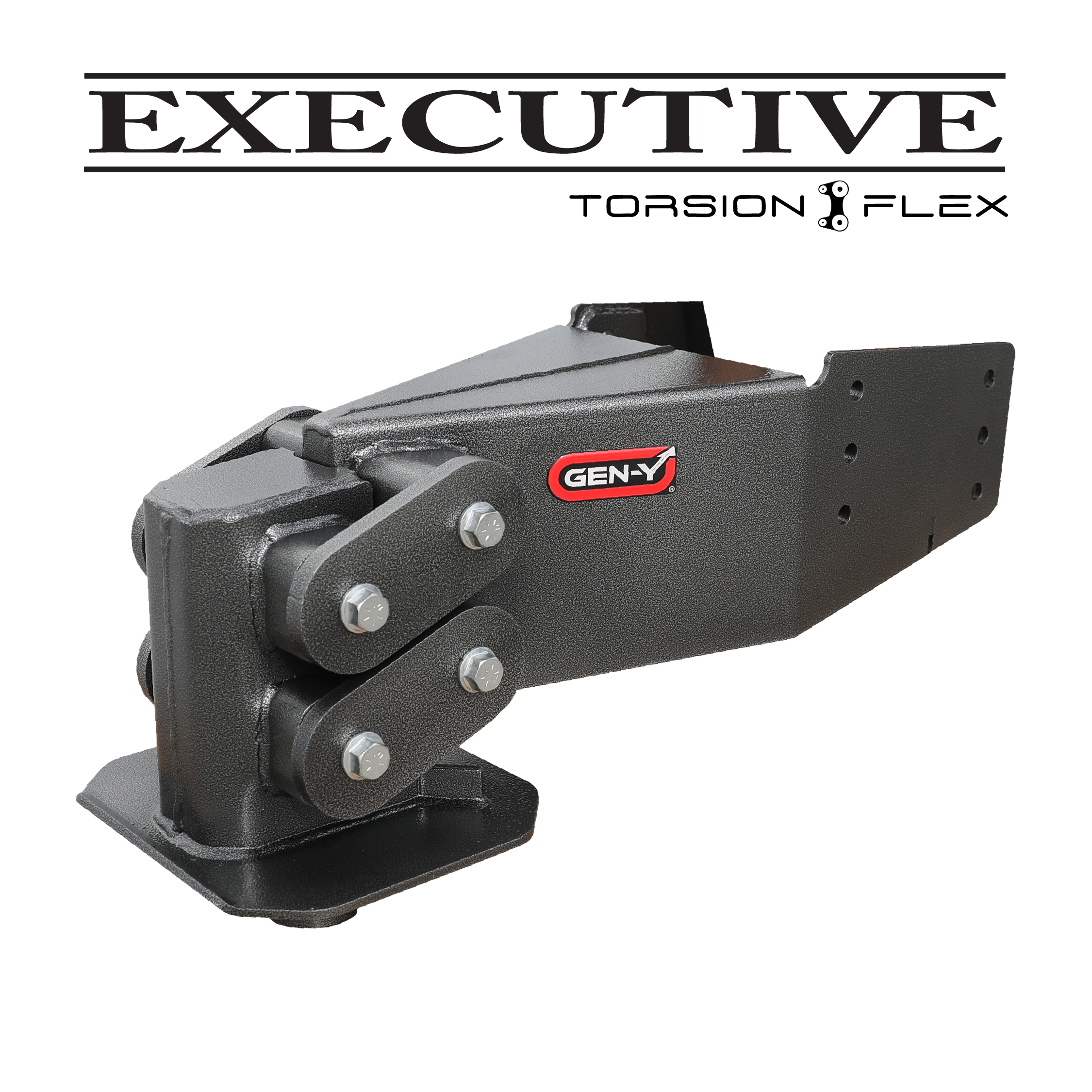

The GEN-Y EXECUTIVE Fifth Wheel King Pin Box is a TORSION-FLEX replacement pin box for LCI Rhino Box frames. It isolates the truck bed from trailer shock with rubber torsion arms instead of a rigid connection, and customers report up to 90% smoother towing than a standard rigid pin box, with better steering control. This model keeps the traditional king pin connection and is matched to trailers with a GVWR of 16,365 – 25,450 lbs (3,500 – 6,500 lbs pin weight). It bolts to your existing pin box frame with an adjustable-height bolt pattern so you can set the trailer to tow as level as possible. Choose the model that matches your trailer’s actual GVWR and frame, and stay within the specified pin weight range. Tow capacity is limited by the lowest-rated component.

Features:

Connection: Fifth Wheel King Pin
Frame Model: LCI Rhino Box
Shim Plates: Not required for the Rhino Box
Frame Bolt Spacing (front row to back row): 7-1/2" on center
Trailer GVWR: 16,365 – 25,450 lbs
Pin Weight Range: 3,500 – 6,500 lbs
Towing Rating: 30,000 lbs

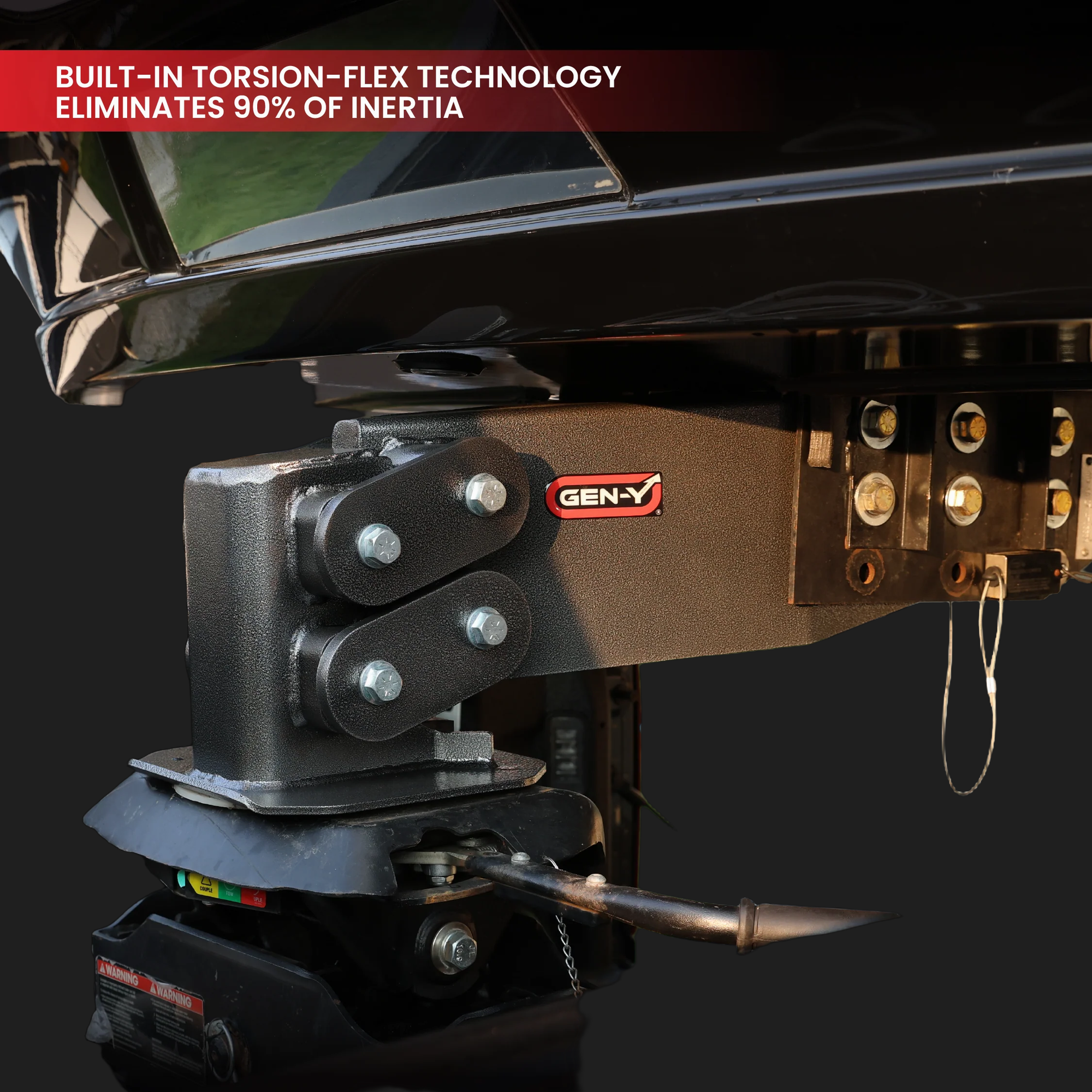

Suspension: Built-in TORSION-FLEX rubber torsion shock absorption
Mounting: Adjustable-height bolt configuration (2" of vertical adjustability)
Mounting Bolts: 5/8" x 2" Grade 8 bolts and nuts, minimum 4 per side, torqued to 160 ft. lbs. (re-torque after 50 miles)
Bolt Kit: Sold separately
Safety Chains: Sold separately
Bed Rail Clearance: 6 – 8" recommended
Material: Heavy Duty Steel, precision milled and drilled
Finish: Durable Powder Coat
Product Weight: 154 lbs
Break-In Period: 1,000 miles
Testing: Exceeds SAE J2638 weight testing requirements
Maintenance: Maintenance Free
Patents: US D873723S, US10633039B2 (TORSION-FLEX: US9505281B1, USD773345S1, US9868327B1)
Made In: USA
Warranty: 5 years on rubber components, Limited Lifetime Warranty on all remaining components. Optional TORSION-FLEX Lifetime Warranty available

EXECUTIVE Installation Guide

EXECUTIVE User Guide

Pin Box Measuring & Fitment Guide

Warranty Users Guide

TORSION-FLEX Lifetime Warranty

SKU’S:
GH-8071
