Description:

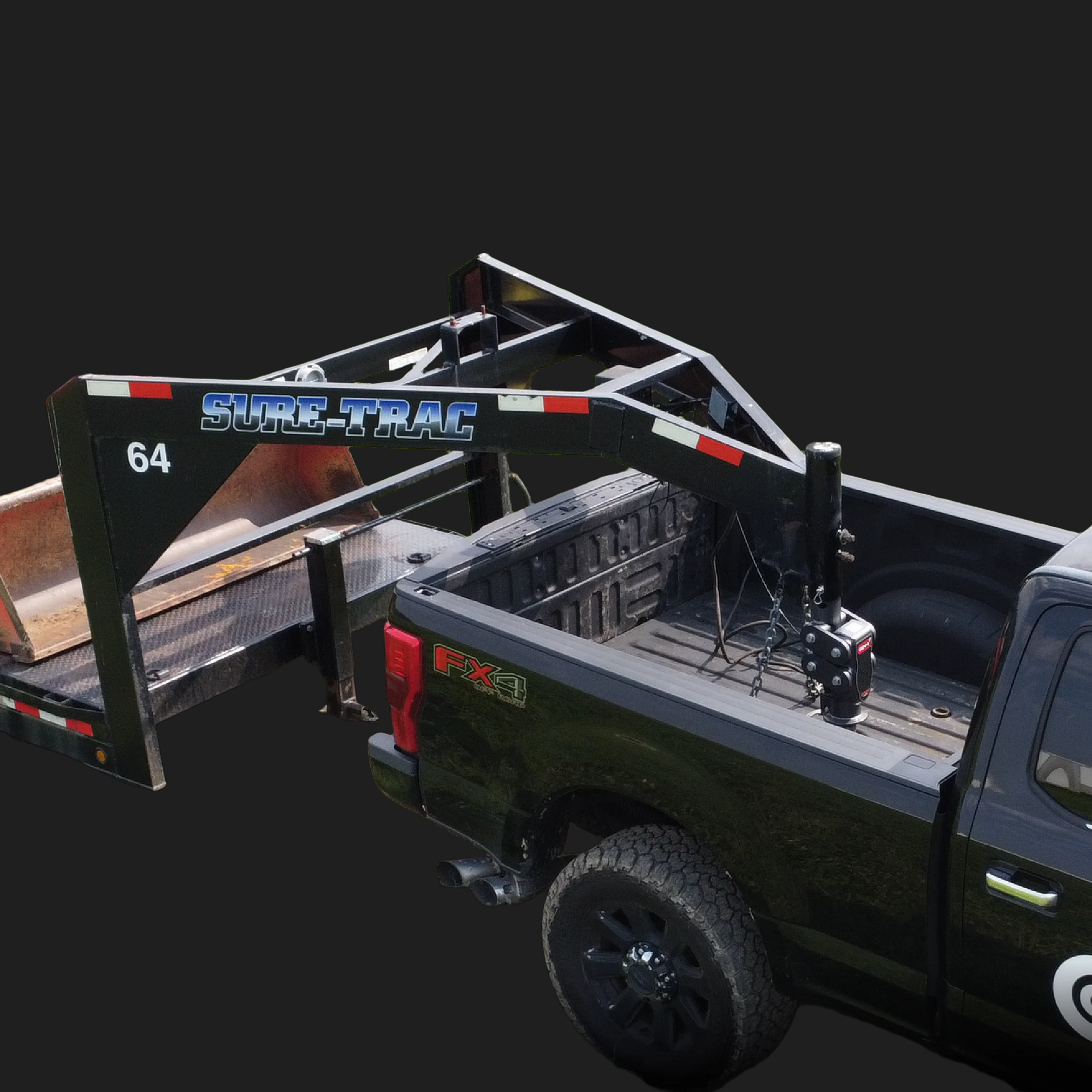

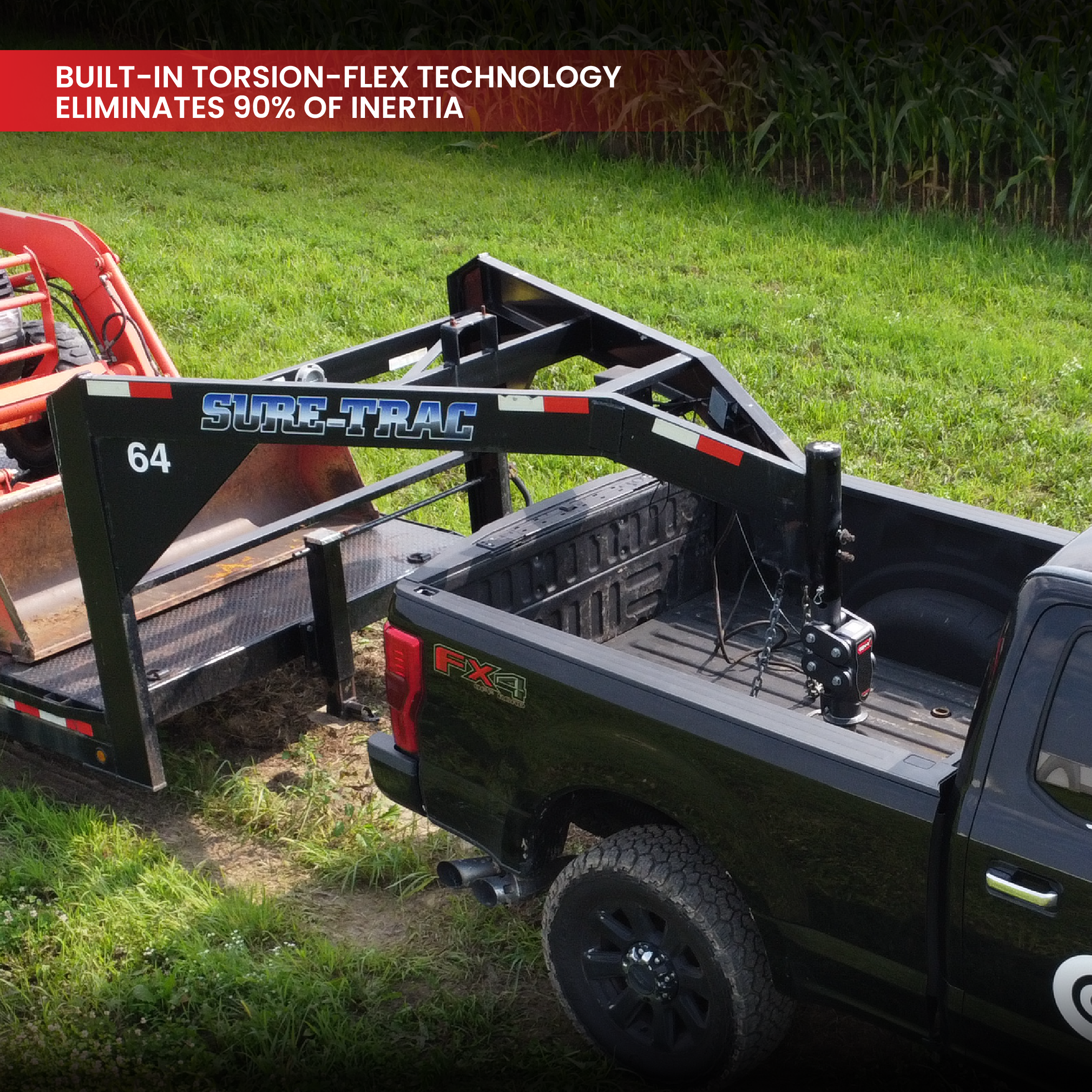

The GEN-Y SPARTAN Torsion-Flex Gooseneck Coupler with SnapLatch is a replacement gooseneck coupler for trailers with a 4" square tube. It is rated for 25,000 lbs towing and 4,500 lbs tongue weight, and it is built for flatbed, utility and enclosed gooseneck trailers. Its TORSION-FLEX technology isolates the truck from the trailer for a smoother, safer and more comfortable tow, and GEN-Y reports up to a 90% smoother ride. GEN-Y says hotshot customers who tow flatbed goosenecks daily have reported fuel savings and less tire wear. The self-latching SnapLatch coupler makes a proper connection every time you hook up and resets for the next hookup. The SPARTAN is taller than a standard coupler, so measure from the bottom of your current coupler to the retaining pin before ordering. Gooseneck trailers vary from brand to brand, so check your hole pattern too; a custom hole pattern may be required. Tow capacity is limited by the lowest-rated component.

Features:

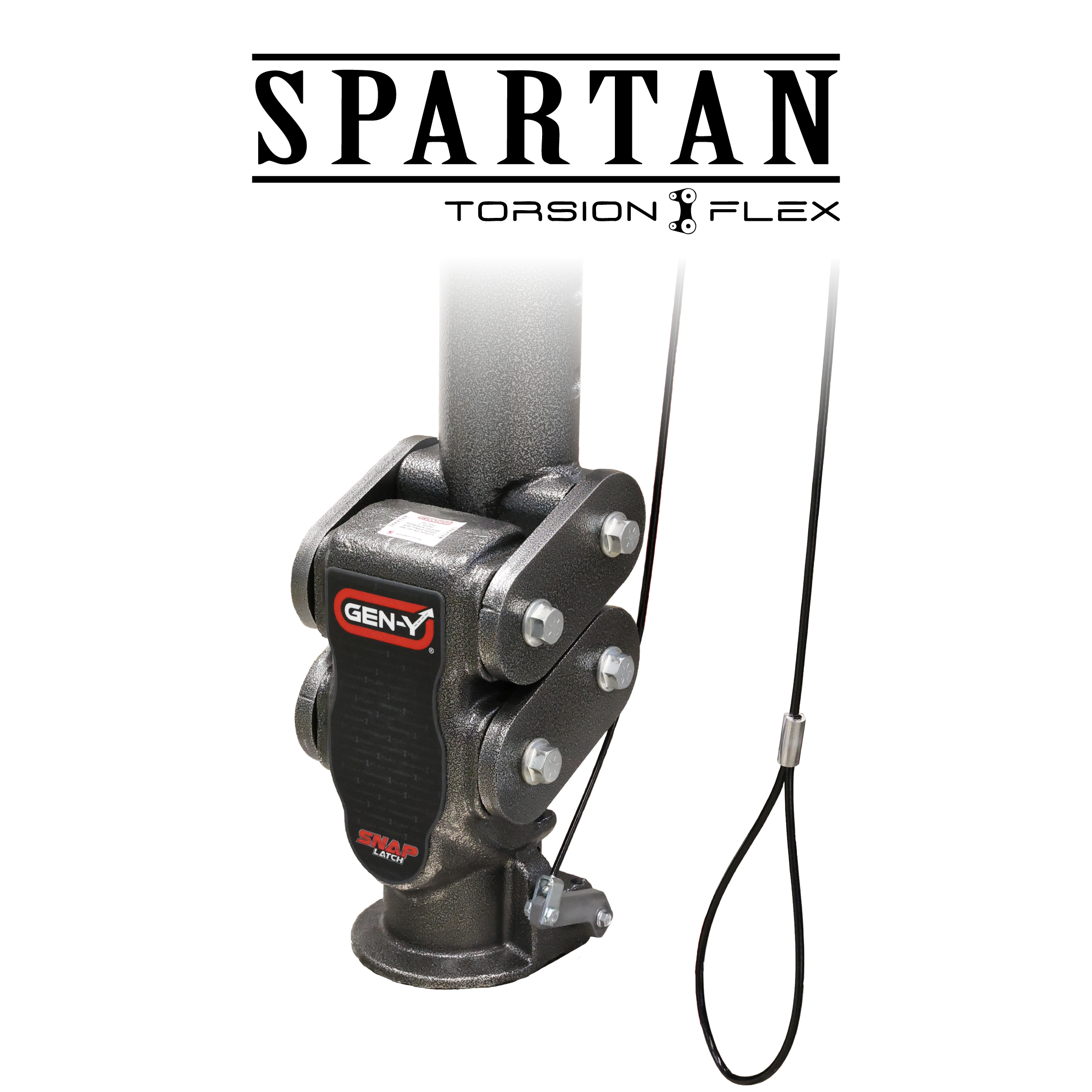

Coupler: 2-5/16" SnapLatch self-latching coupler with SnapLatch Pull Rod
Tube: 4" Square
Offset: 2.5"
Pin: 3/4" pin included (GH-098)
Tongue Weight Rating: 4,500 lbs
Recommended Tongue Weight: 1,501 – 4,000 lbs (GEN-Y 4.5K model sizing chart)
Towing Capacity: 25,000 lbs
Suspension: Built-in TORSION-FLEX shock absorption
Trailer Types: Flatbed, utility and enclosed gooseneck trailers
Recessed Ball: Compatible if the ball is within 1" of the truck bed
Clearance: Taller than a standard coupler. Measure from the bottom of your current coupler to the retaining pin
Hole Pattern: Check before purchase. A custom hole pattern may be required for your trailer
Material: Steel
Finish: Zinc Primer and Epoxy Powder Coat
Product Weight: 110 lbs
Break-In Period: 1,000 miles
Testing: Exceeds SAE J2638 testing requirements
Maintenance: Maintenance Free
Patents: US9505281B1, USD773345S1, US9868327B1
Made In: USA
Warranty: 5 years on rubber components, Limited Lifetime Warranty on all remaining components. Optional TORSION-FLEX Lifetime Warranty available

How to Determine Which SPARTAN You Need

Determine Your SPARTAN Model & Gooseneck Pin Style

Warranty Users Guide

TORSION-FLEX Lifetime Warranty

SKU’S:
GH-7052
