Description:

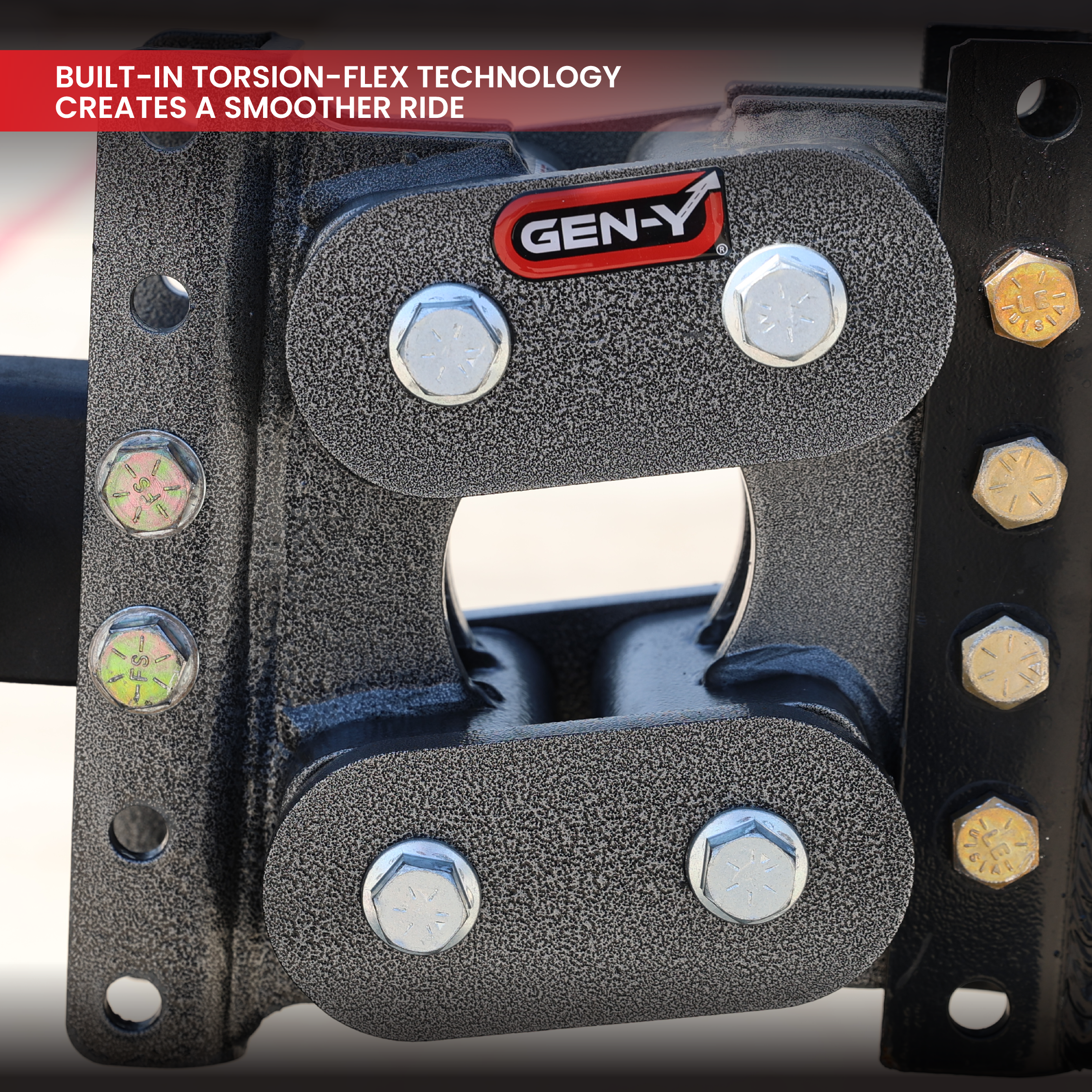

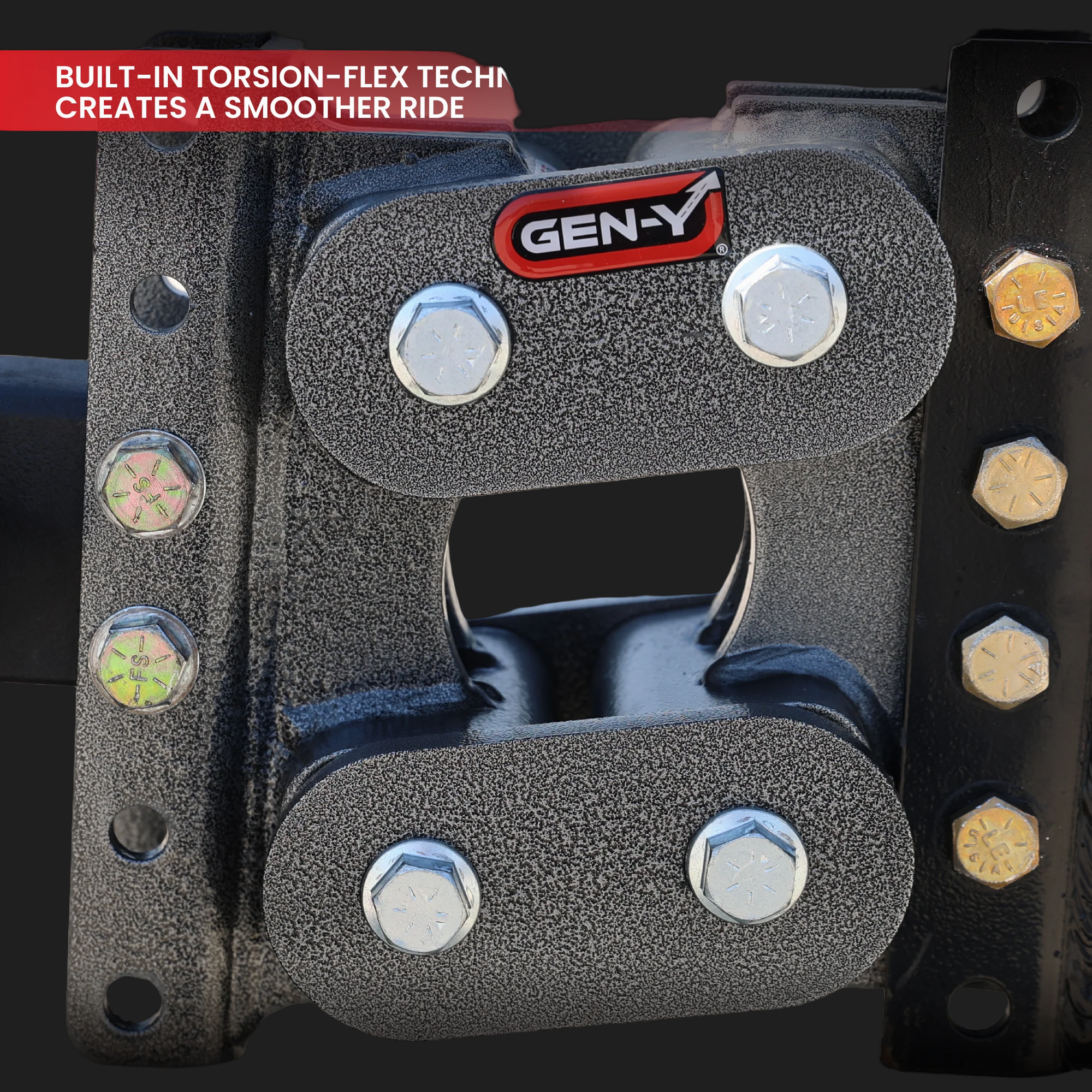

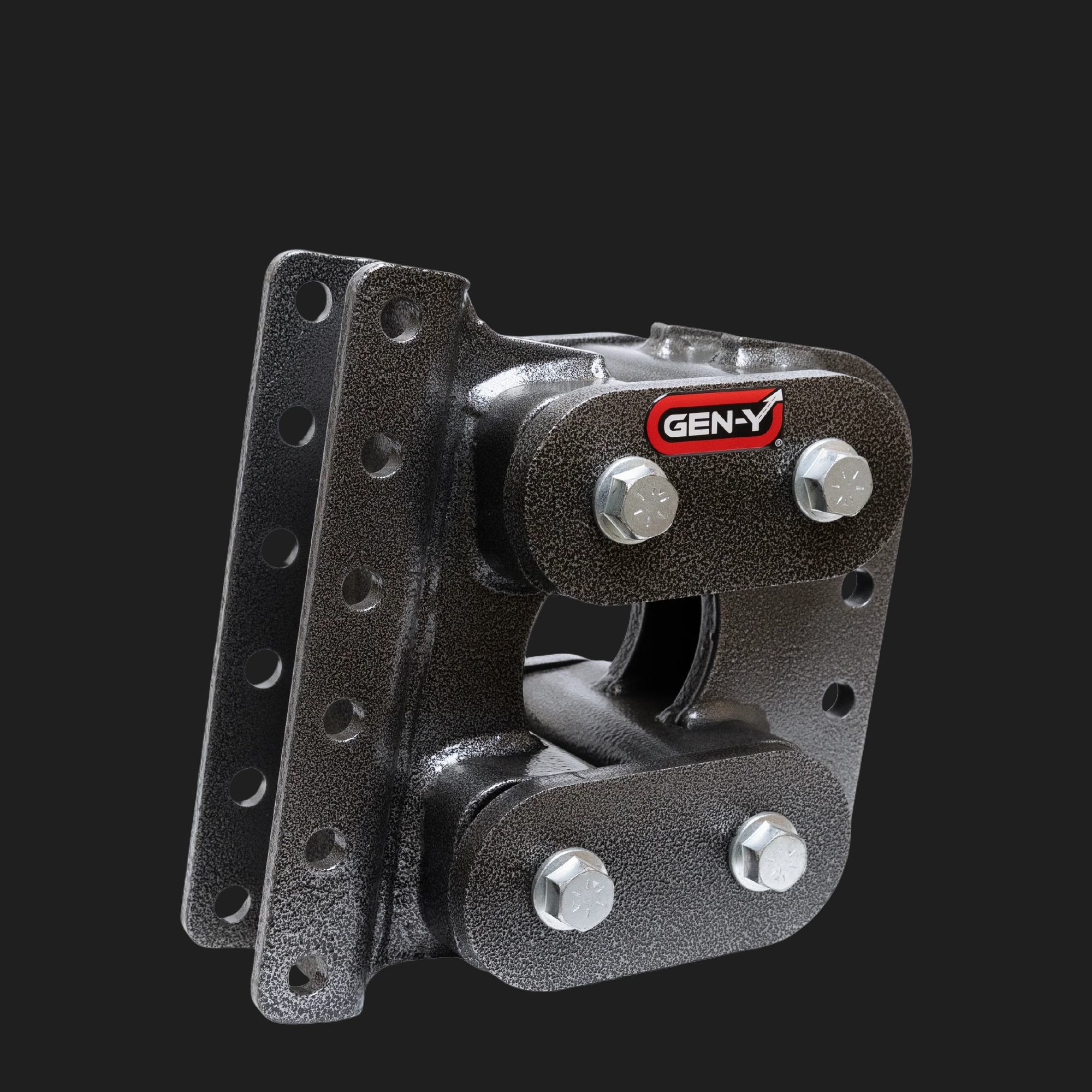

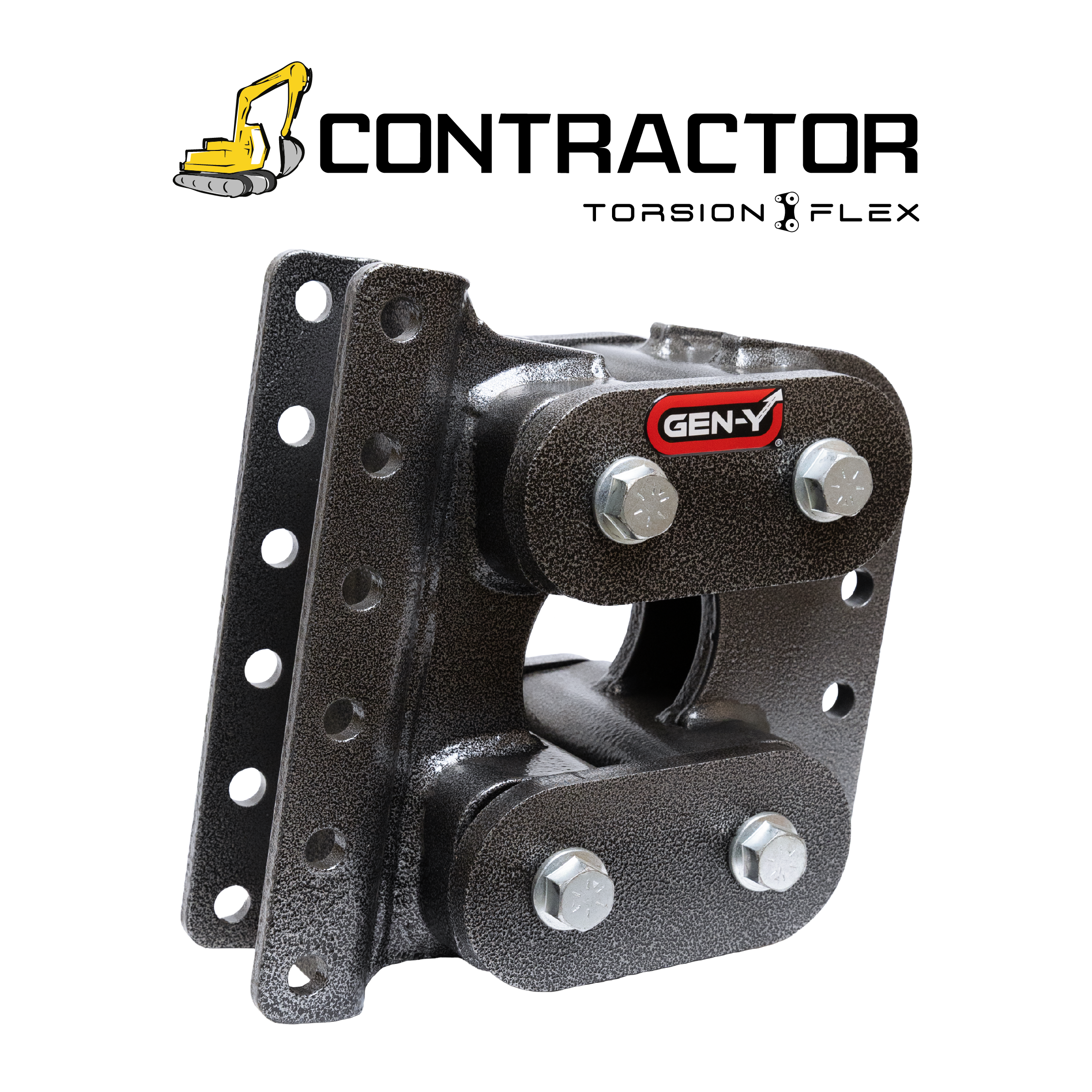

The GEN-Y CONTRACTOR Torsion-Flex Trailer Channel Mount is an adjustable coupler mount that works with most channel mount couplers. This model is rated for 16,000 lbs towing and a 1,000 – 1,700 lbs tongue weight range. It is built from heavy-duty steel and rubber TORSION-FLEX cords that absorb shock instead of passing it between the truck and trailer, and it is virtually maintenance-free: there is no airbag to maintain and no bearings to crush or wear out. GEN-Y says the rubber TORSION-FLEX design reduces inertia by up to 90% for more control and a smoother ride. The tow vehicle and trailer track independently, which reduces sway and trailer bounce and limits the impact of bumps, potholes, expansion joints, curves and hills. A built-in tongue weight scale helps you load the trailer balanced and safely. The ball coupler is not included. Tow capacity is limited by the lowest-rated component.

Features:

Mount Type: Trailer Channel Mount, compatible with most channel mount couplers
Ball Coupler: Not included (GEN-Y Channel Mount Coupler, 21,000 lbs towing, sold separately)
Towing Capacity: 16,000 lbs
Tongue Weight Rating: 1,700 lbs
Tongue Weight Range: 1,000 – 1,700 lbs
Tongue Weight Scale: Built-in (min / max indicator)
Suspension: Rubber TORSION-FLEX cords. No airbag to maintain and no bearings to crush or wear out
Mounting Bolts: 4 Grade 8 mounting bolts included
Installation: 5/8" x 1-1/2" Grade 8 bolts and nuts, 2 per side for the thru bolts and 2 per side for the stabilizer bolts, torqued to 120 ft. lbs.
Material: Heavy-Duty Steel
Product Weight: 66 lbs
Break-In Period: 500 miles
Testing: Exceeds SAE J684 weight testing requirements
Maintenance: Virtually Maintenance Free
Patents: US10639950B2, US9505281B1, USD773345S1, US9868327B1
Made In: USA
Warranty: 5 years on all moving parts, Lifetime Guarantee on the rest of the components. Optional TORSION-FLEX Lifetime Warranty available

CONTRACTOR User Guide

GH-10001 Spec Drawing

Warranty Users Guide

TORSION-FLEX Lifetime Warranty

SKU’S:
GH-10001
